Description

SPECIFICATIONS

Arrow ID: 6.2mm

Arrow OD: 6.5mm

Arrow feather: 2pcs 4 inch red rubber feather

Arrow length: 60cm (23.6inch)

Arrow shaft length: 56.2 (22inch)

Arrow weight: About 21.7g/pc

Arrowhead: 100 grain thread arrowhead

Brand Name: NONE

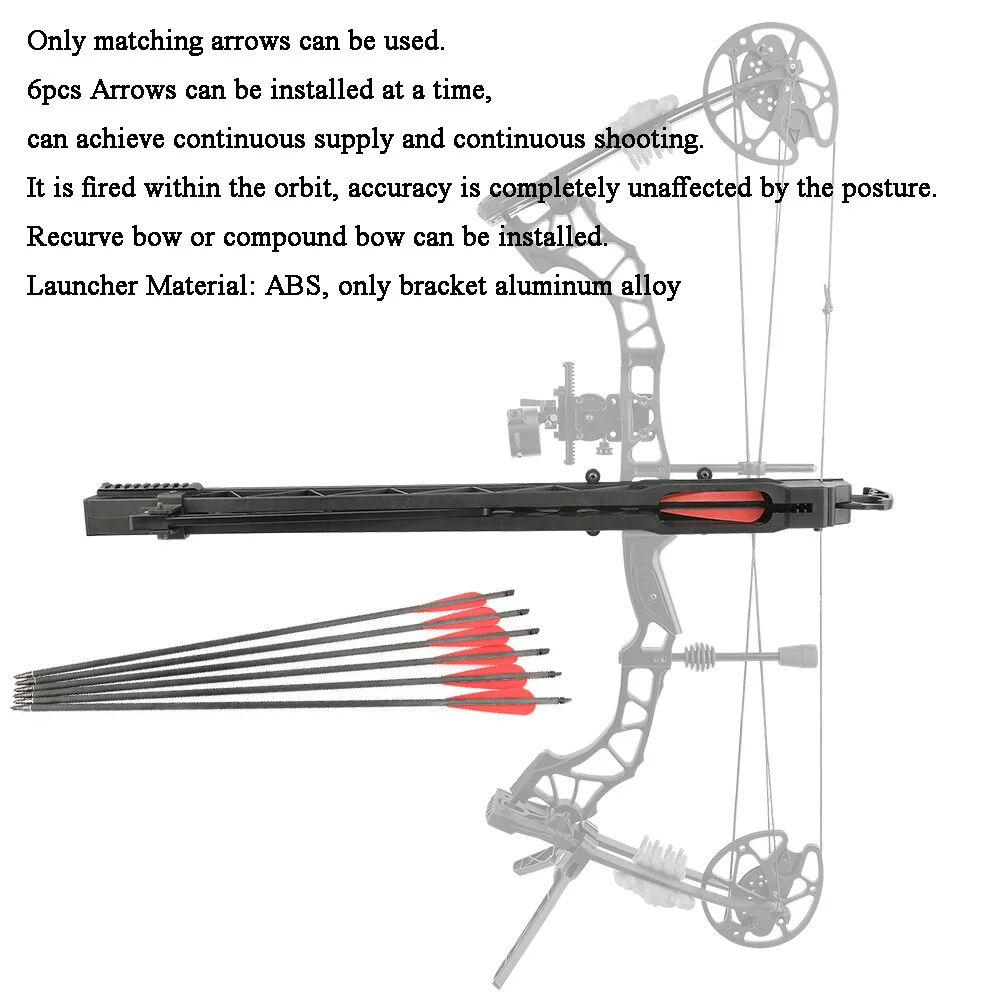

Fit for: Compound bow, recurve bow

High-concerned chemical: none

Material: Pure carbon arrows

Model Number: Archery Arrow Launcher

Name: Archery arrow track

Package size: About 93*8.6*5cm

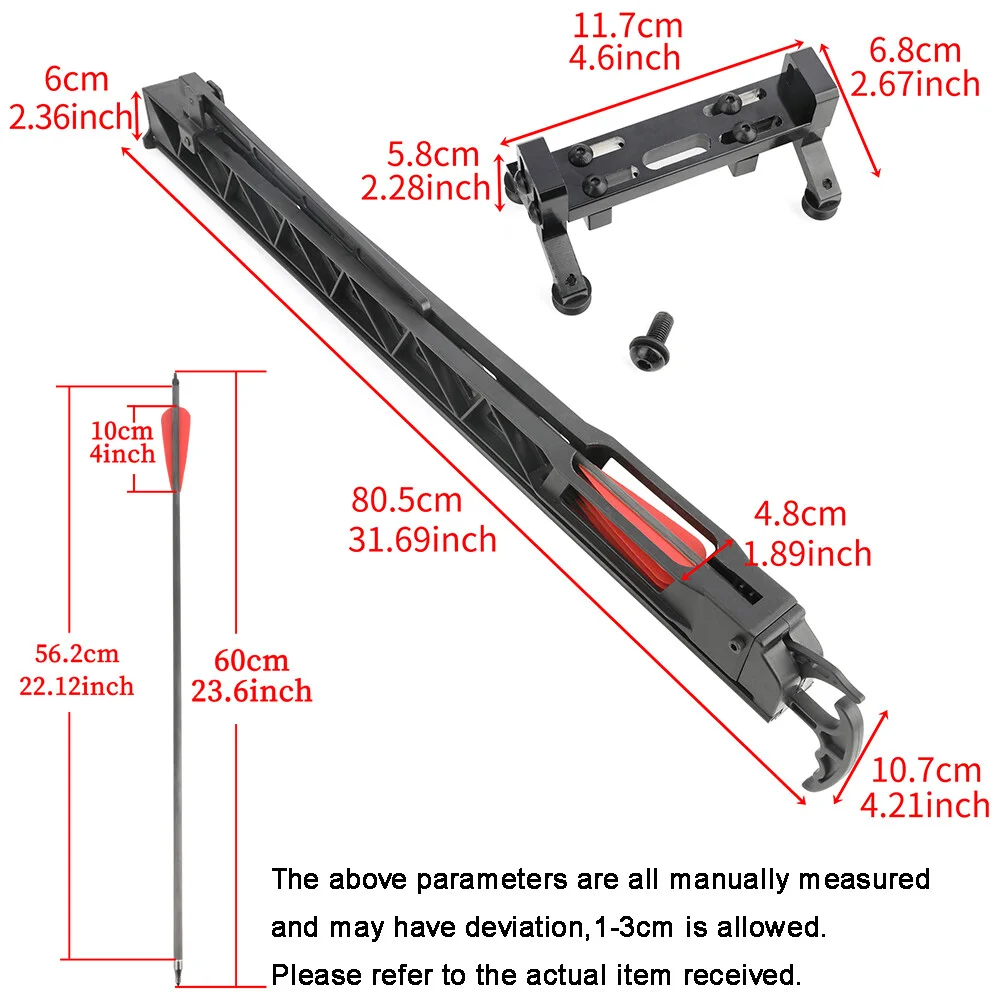

Product size: About 80.5*10.7*4.8cm

Product weight: About 1245g

With Package Weight: About 1418g

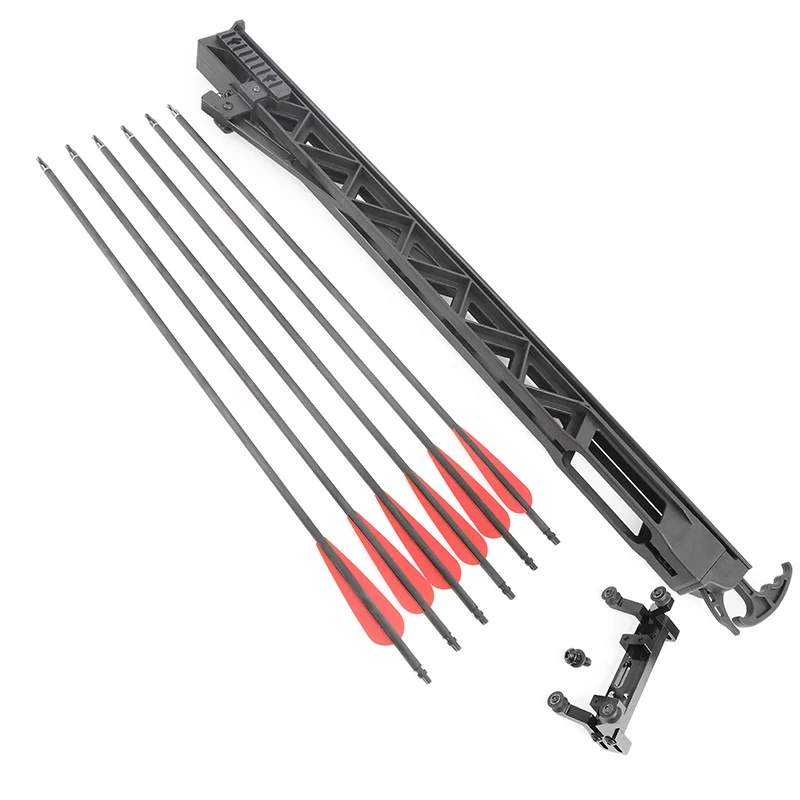

Archery Arrow track
Material: ABS;The installation bracket is made of aluminum alloy
Product size: About 80.5*10.7*4.8 cm
Product weight: About 1245g
With Package Weight: About 1418g
Package size: About 93*8.6*5cm
Fit for: Compound bow, recurve bow

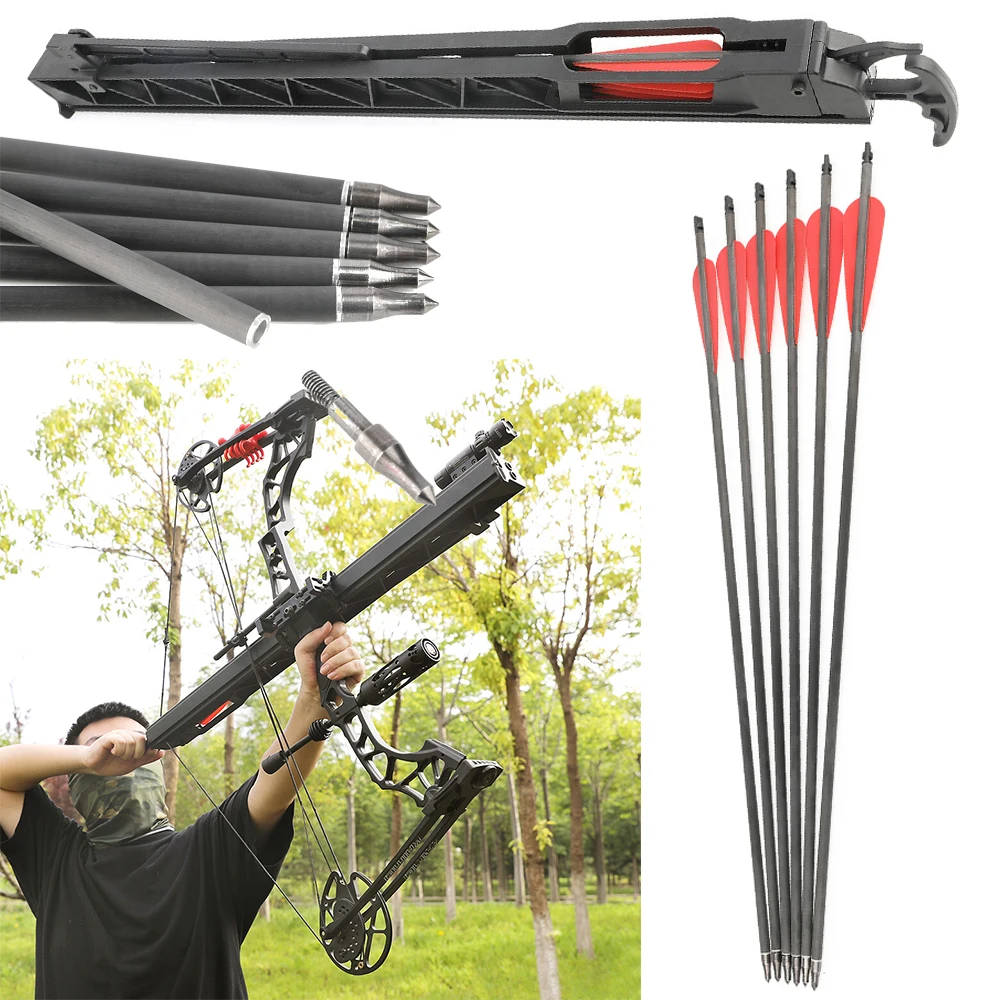

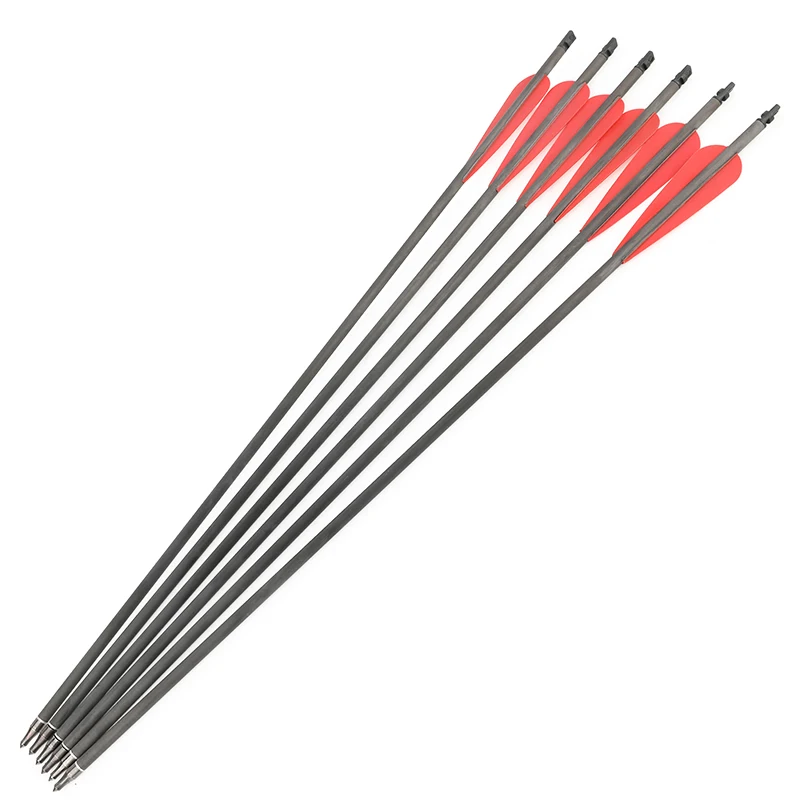

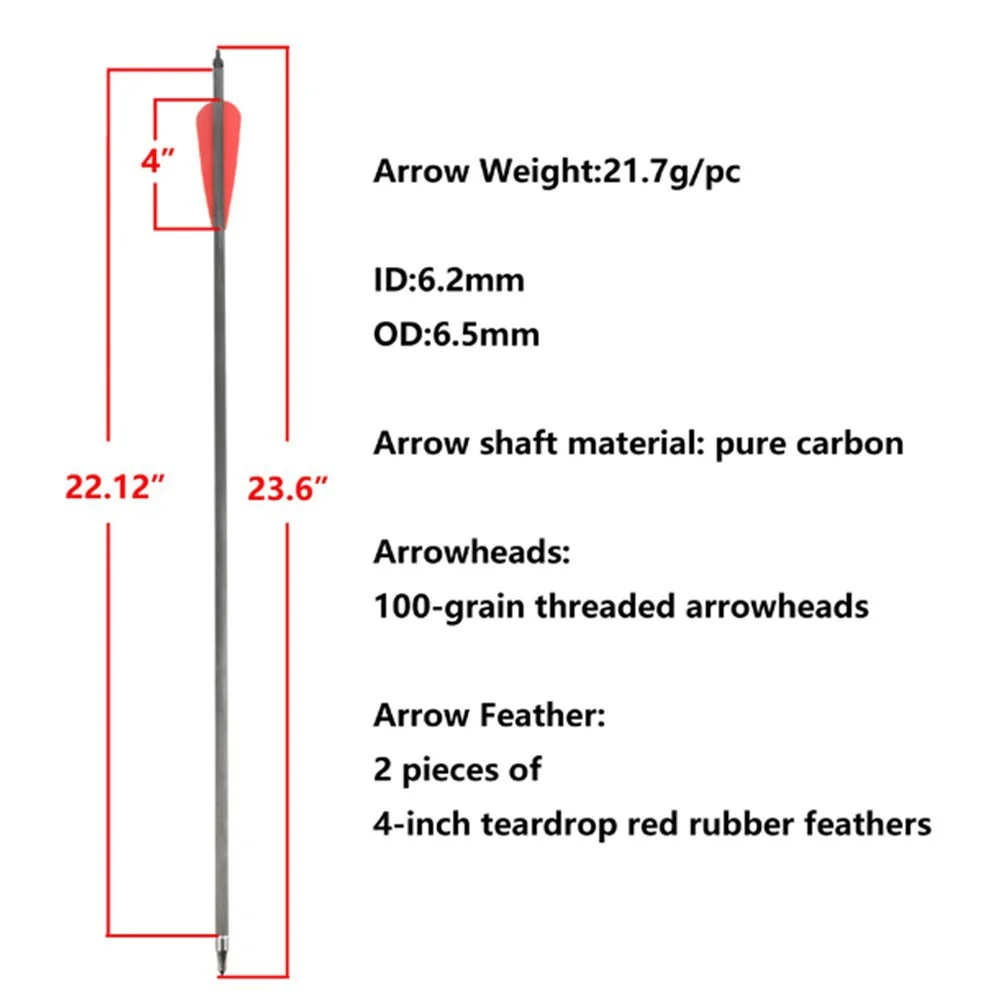

Arrow:
Material: Pure carbon arrows
Arrow feather: 2pcs 4 inch red rubber feather
Arrow shaft length: 56.2cm (22inch)
Arrow length: 60cm(23.6inch)
Arrowhead: 100 grain thread arrowhead
Arrow weight: About 21.7g/pc
ID: 6.2mm
OD: 6.5mm

Features:

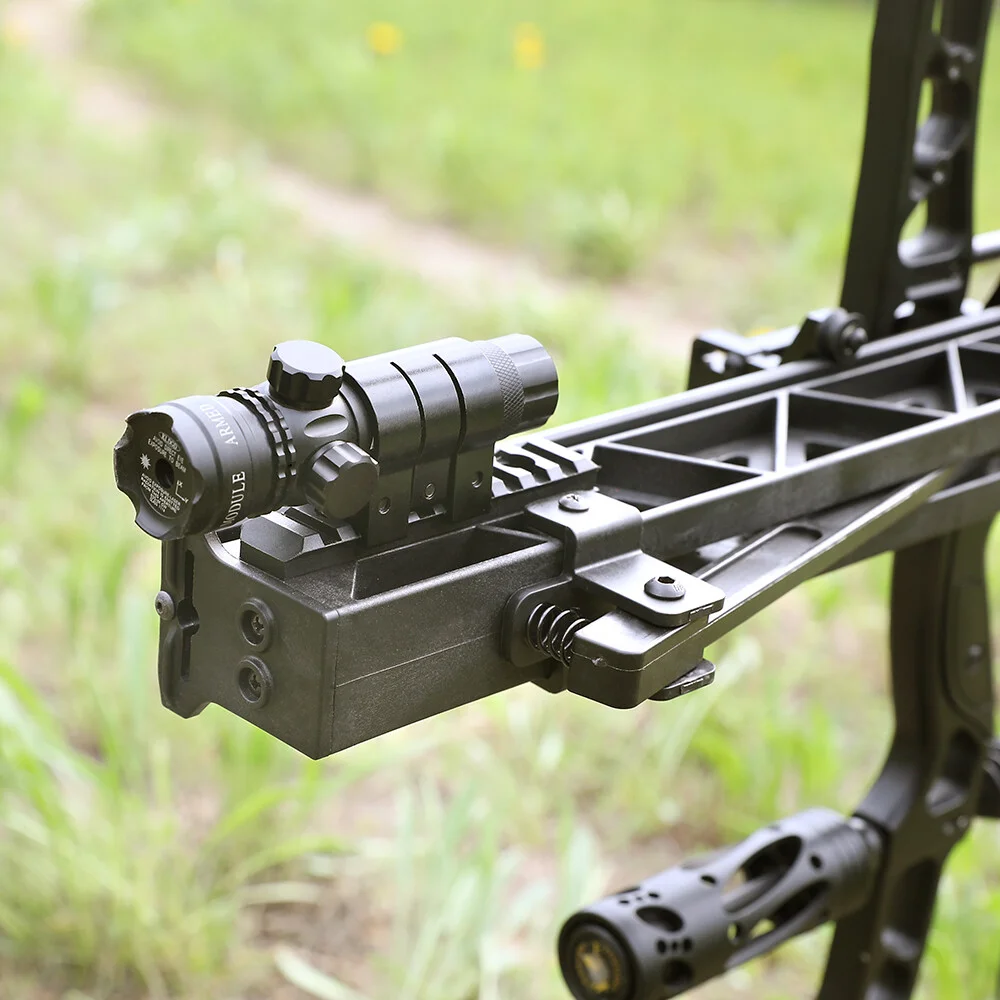

1. Laser can be installed.
2. 5-pins sight can also be installed.

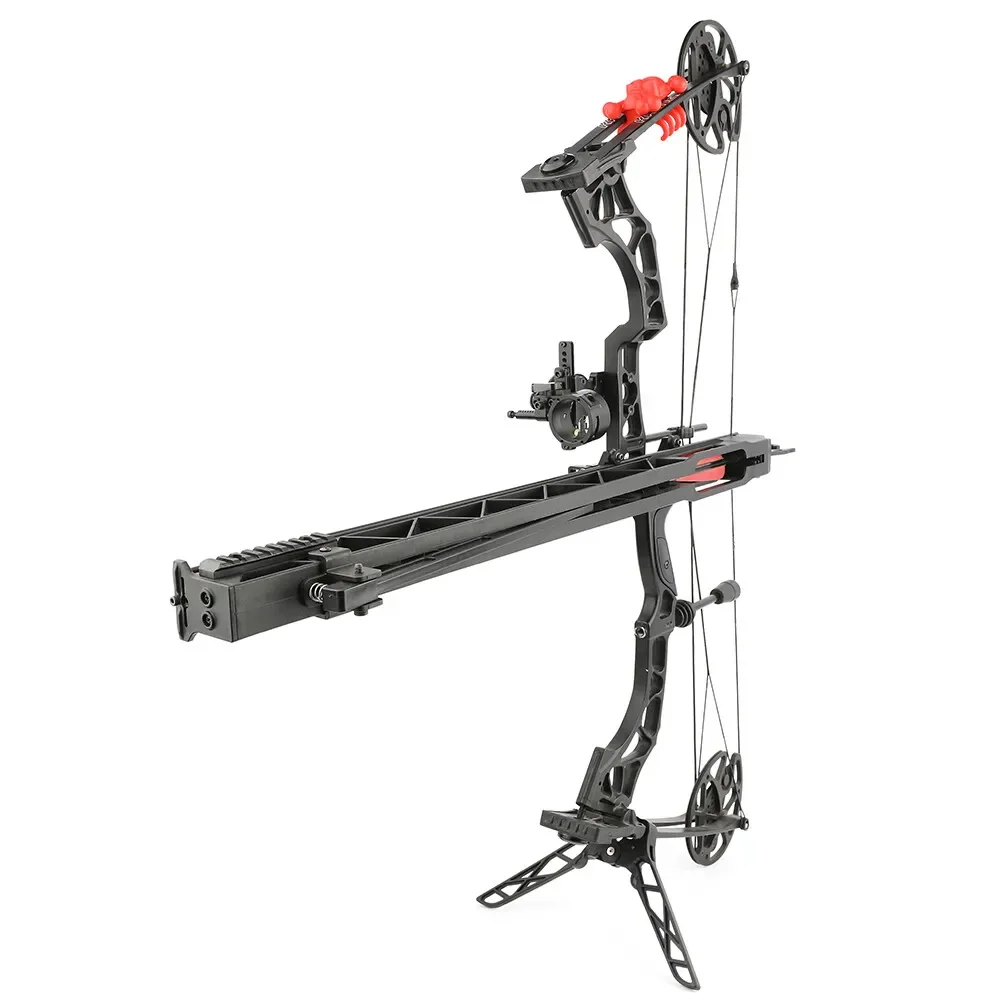

Note: The product does not include compound bow and other accessory, they are only used as an application scenario.

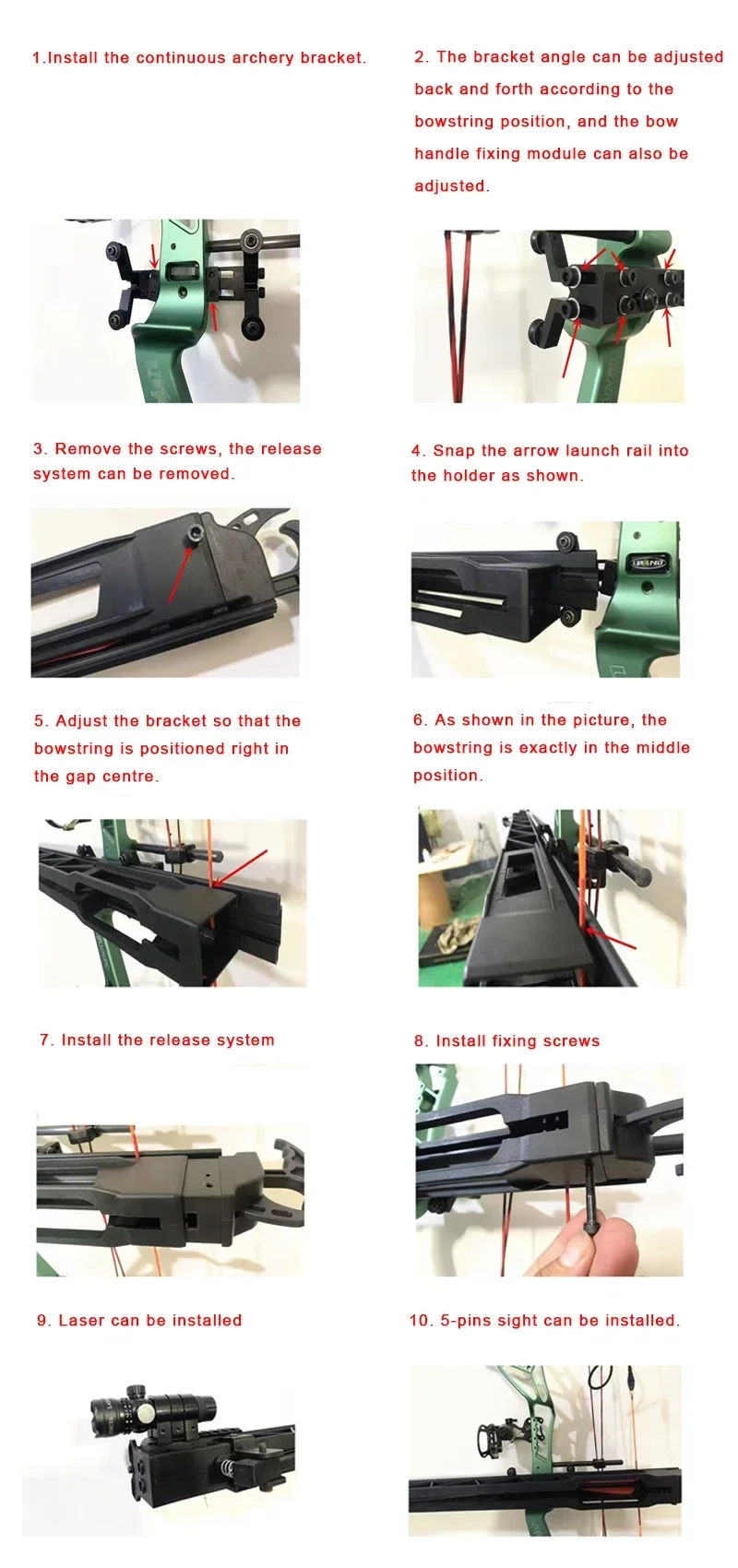

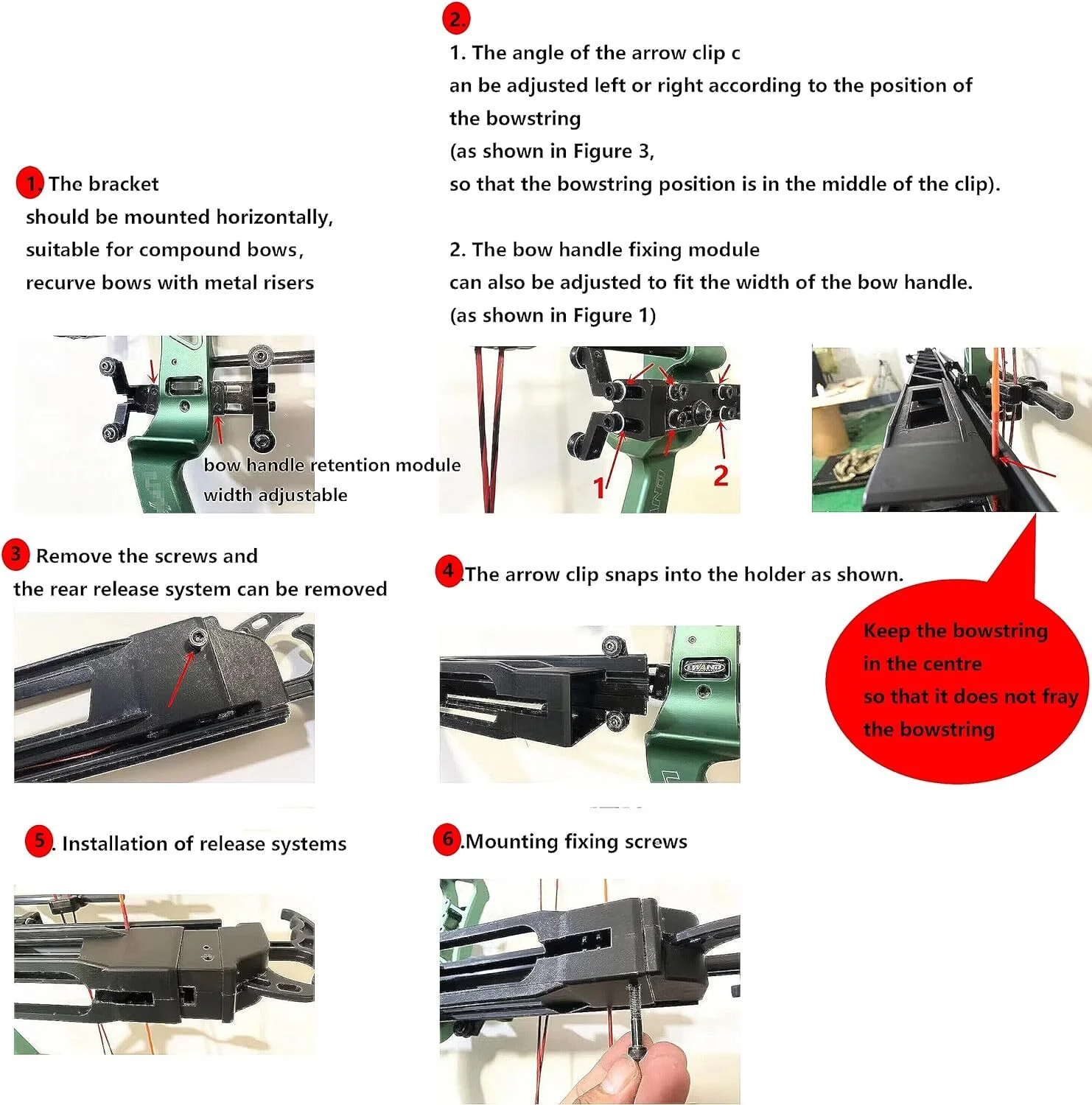

 Installation steps:

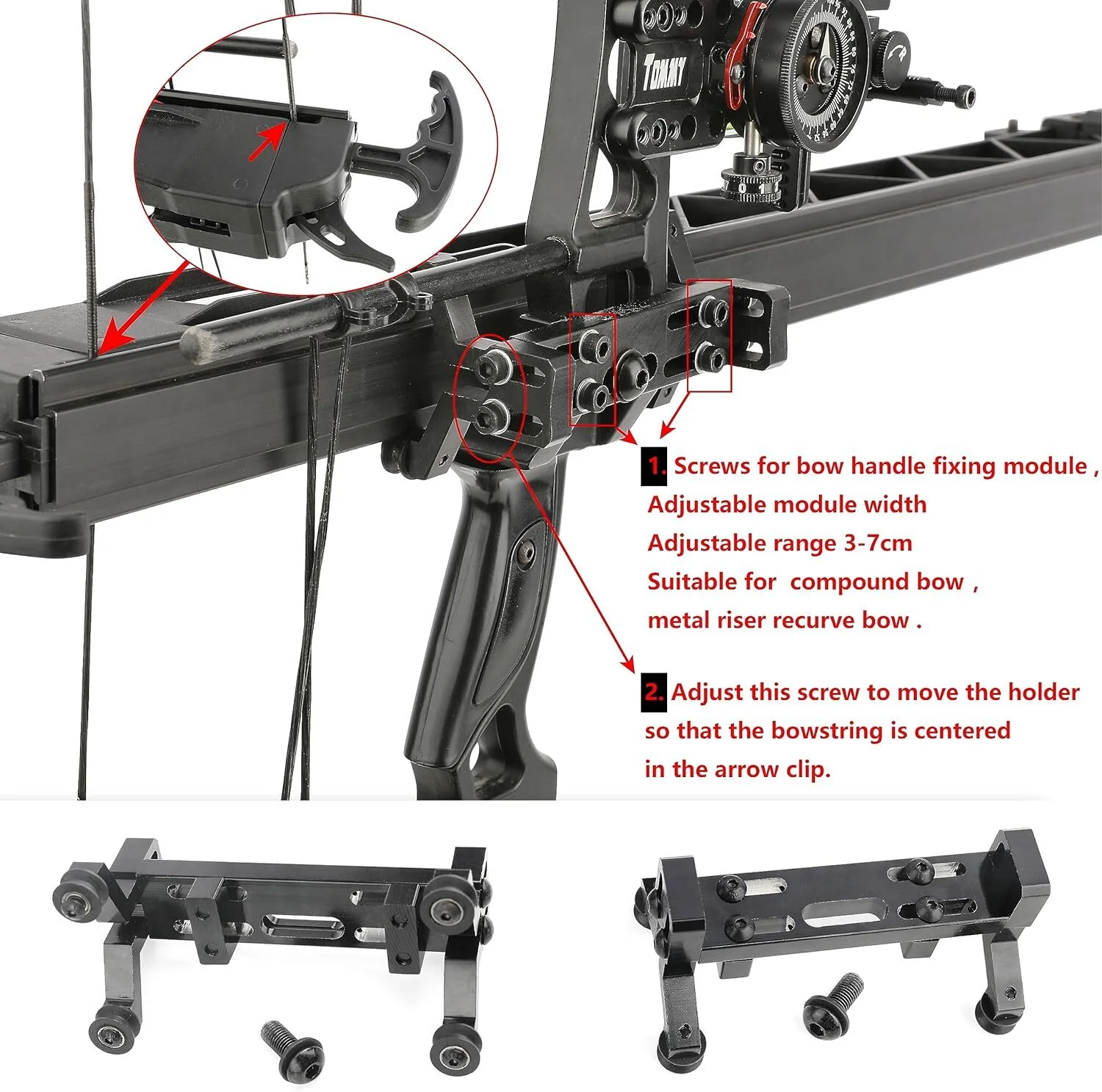

1. Install the continuous archery bracket.
2. The bracket angle can be adjusted back and forth according to the bow string position, and the bow handle fixing module can also be adjusted.
3. Remove the screws and the release system can be removed.

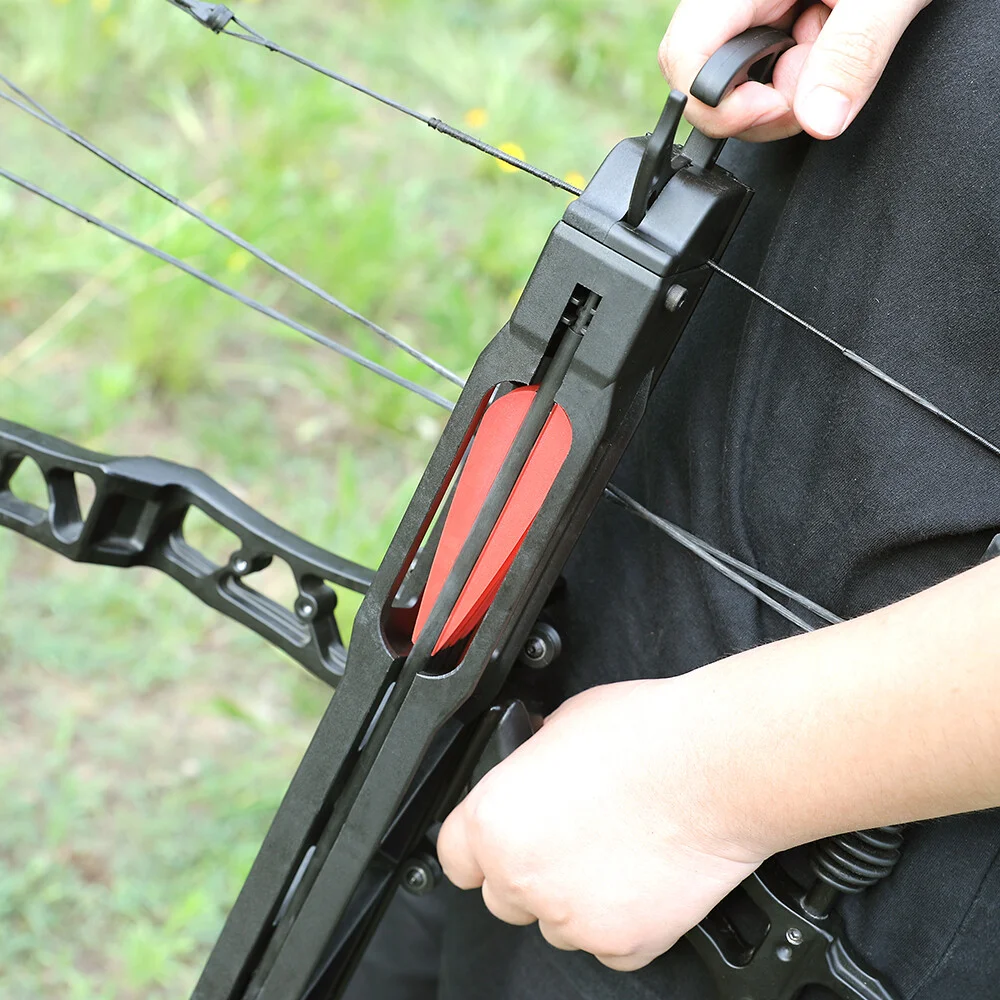

4. Snap the arrow launch rail into the holder as shown.

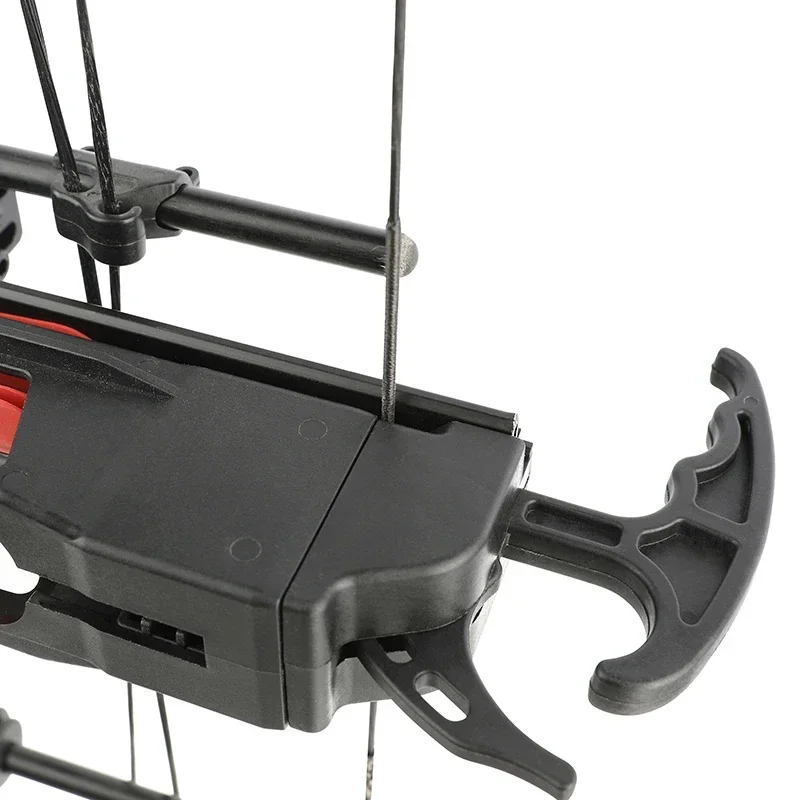

5. Adjust the bracket so that the bowstring is positioned right in the gap centre.
6. As shown in the picture, the bowstring is exactly in the middle position.
7. Install the release system.
8. Install fixing screws.
